Built for High-Performance Commercial Cryotherapy
MACYPAN new-generation ultra-low temperature cryotherapy chamber is equipped with a self-developed cascade ultra-low temperature compression refrigeration system, subverting the traditional structure of built-in evaporators and circulating fans used in ordinary cryo chambers.
All air processing procedures including compression, heat removal, deep dehumidification and pre-cooling are completed in the external unit. Ultra-clean cold air as low as -112°C is delivered stably into the chamber through professional insulated ducts.
Adopting an original zero internal component design, the chamber has no evaporator, no heat exchange pipeline and no circulating fan inside. Uniform cooling is realized through static pressure air supply. It completely solves the industry pain points of traditional cryo devices such as frost and water dripping, fan noise, uneven temperature, mold growth, frequent defrost shutdowns and complicated maintenance, making it the top choice for high-end wellness centers, resorts and professional cryotherapy institutions.
Dual-Chamber Commercial Cryotherapy System for Whole Body Cryotherapy
Featuring an independent pre-chamber, main cryotherapy chamber, dual isolated refrigeration circuits, and integrated electric refrigeration, Iceplanet is designed for businesses that require more than a conventional cryo chamber. The dual-chamber architecture combines efficient customer flow, independent temperature control, and precise thermal management with heavy-duty construction, providing a reliable solution for continuous, high-frequency commercial cryotherapy operation.
-110°C to -110°C Main Chamber Temperature
16kW Rated Total Power10
800kg Heavy-Duty Construction
Dual-Chamber Architecture
An independent pre-chamber and main cryotherapy chamber create a streamlined two-stage user flow, helping improve comfort and operational efficiency.
Independent Temperature Control
Separate refrigeration circuits allow the pre-chamber and main chamber to operate independently, reducing temperature cross-interference.
Commercial-Grade Construction
A heavy-duty insulated structure, reinforced frame, airtight sealing, and vibration-dampening system are designed for demanding commercial environments.
Continuous Customer Flow
The dual-chamber configuration allows preparation for the next user while another user completes a session in the main chamber.
Professional Dual-Chamber Cryotherapy System
Unlike conventional single-chamber systems, Iceplanet integrates two dedicated zones into one commercial cryotherapy system.
The independent pre-chamber provides a gradual temperature transition before the user enters the main chamber, while the main cryotherapy chamber provides the core ultra-low-temperature environment.
This two-stage configuration is designed to improve the overall user experience while helping commercial facilities maintain a more efficient customer flow.
Approx. -10°C to Ambient
Independent Pre-Chamber
The pre-chamber acts as a temperature-buffered transition zone before entry into the main cryotherapy chamber.
It provides a gradual cold adaptation stage and allows the next user to prepare while the main chamber is in operation.
-110°C To -110°C
Main Cryotherapy Chamber
The main chamber provides the core ultra-low-temperature environment for whole body cryotherapy sessions.
The chamber is designed for professional commercial applications where stable temperature control and efficient session turnover are important.

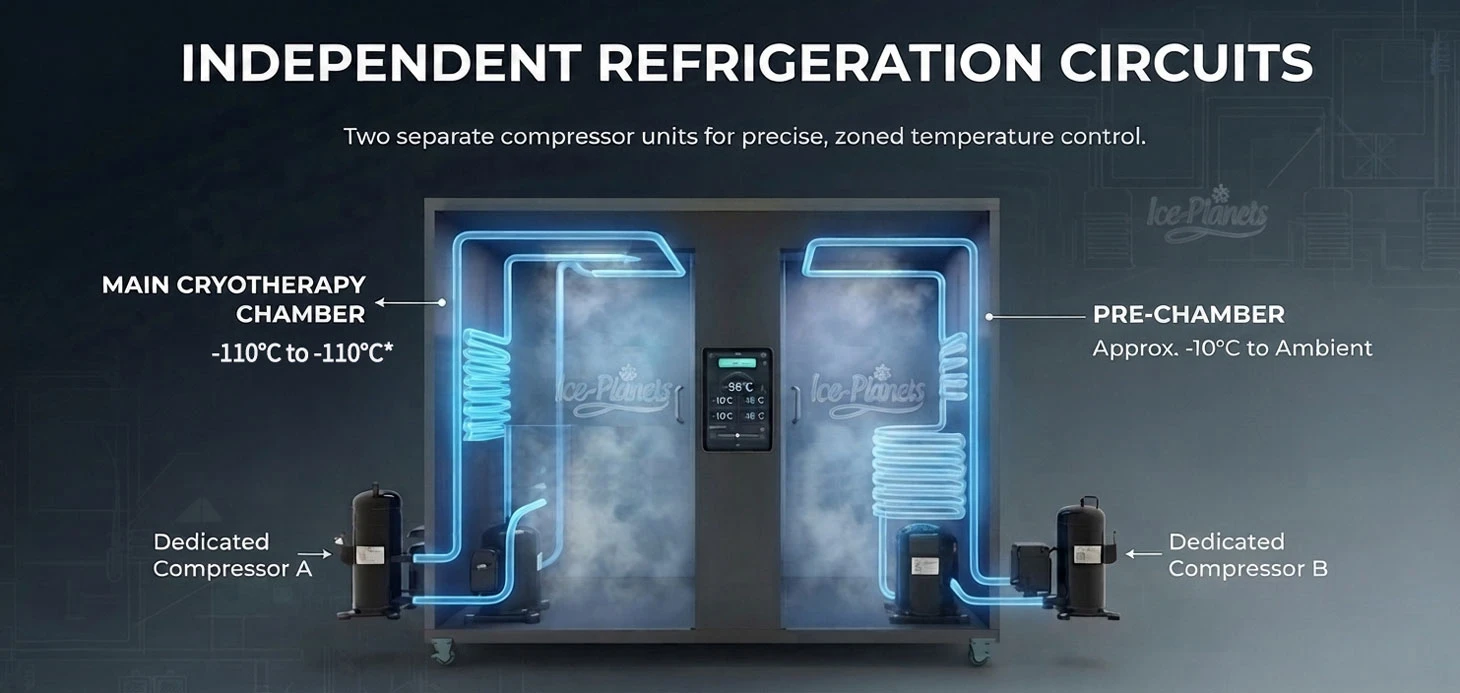

Dual-Circuit Cooling System
Independent Refrigeration Circuits
The pre-chamber and main chamber feature separate refrigeration circuits, helping minimize temperature cross-interference and enabling independent thermal management.
A Smarter Workflow for Whole Body Cryotherapy
01
PRE-CHAMBER ENTRY
Gradual Temperature Adaptation
The user enters the temperature-buffered pre-chamber before moving into the main cryotherapy zone.
02
MAIN CRYOTHERAPY SESSION
Ultra-Low Temperature Environment
The user enters the main cryotherapy chamber for the designated whole body cryotherapy session.
03
NEXT USER PREPARATION
Continuous Customer Flow
While one session is underway, the next user can prepare in the independent pre-chamber.
Operational Advantage
The dual-chamber design helps eliminate workflow bottlenecks and can increase clinic throughput by up to 30% compared with single-chamber systems.
Designed for Continuous Commercial Operation
For commercial wellness facilities, equipment efficiency is directly connected to customer capacity.
Iceplanet's dual-chamber architecture is designed to reduce workflow interruptions by separating the preparation zone from the main cryotherapy zone.
Instead of waiting for the entire system to complete one customer cycle before beginning the next, the two zones can support overlapping stages of the customer journey.
Higher Throughput
Support a more continuous customer reception flow for high-traffic facilities.
Reduced Waiting
The independent pre-chamber allows the next user to prepare while the main chamber is operating.
Better Space Utilization
The integrated dual-chamber structure combines two operational zones within one commercial system.
Cryotherapy Machine for Sale
Looking for a cryotherapy machine for sale for your wellness center, sports recovery facility, fitness center, rehabilitation facility, or professional cryotherapy business?
Iceplanet provides a commercial electric cryotherapy chamber designed around the requirements of high-frequency operation.
From integrated electric refrigeration and independent dual-chamber control to heavy-duty insulation and optimized power consumption, the system is designed to provide a complete solution for businesses looking to add professional whole body cryotherapy services.
REQUEST A QUOTE
Get product specifications, pricing, configuration details, and installation requirements.
Advanced Electric Refrigeration Technology
Iceplanet uses an integrated electric refrigeration system designed to provide independent temperature control for the dual-chamber configuration.
The system is engineered for high-frequency commercial operation, with optimized refrigeration performance and thermal management designed to maintain consistent low-temperature conditions.
16 kW Rated Total Power
The system is specified with a total rated power of 16 kW, providing an optimized power profile for commercial operation.
Independent Dual-Chamber Control
The two chamber zones can be managed independently, allowing the pre-chamber and main chamber to maintain different temperature conditions.
Continuous Refrigeration Performance
The refrigeration architecture is designed to support repeated commercial cryotherapy sessions without relying on extended equipment recovery periods between users.
Heavy-Duty Cryotherapy Chamber Construction
Built for commercial environments, Iceplanet combines thermal insulation, structural reinforcement, airtight sealing, and vibration control into a robust chamber construction.
Integrated Thickened Insulation
A high-density insulation structure helps maintain the required temperature differential while reducing external condensation.
Reinforced Load-Bearing Frame
The reinforced steel frame provides structural rigidity for demanding commercial environments.
Hermetic Airtight Sealing
The double-gasket sealing structure helps reduce cold-air loss and maintain a stable internal environment.
Vibration-Dampening System
An advanced vibration-control structure helps reduce operational vibration for a more comfortable user experience and long-term equipment stability.

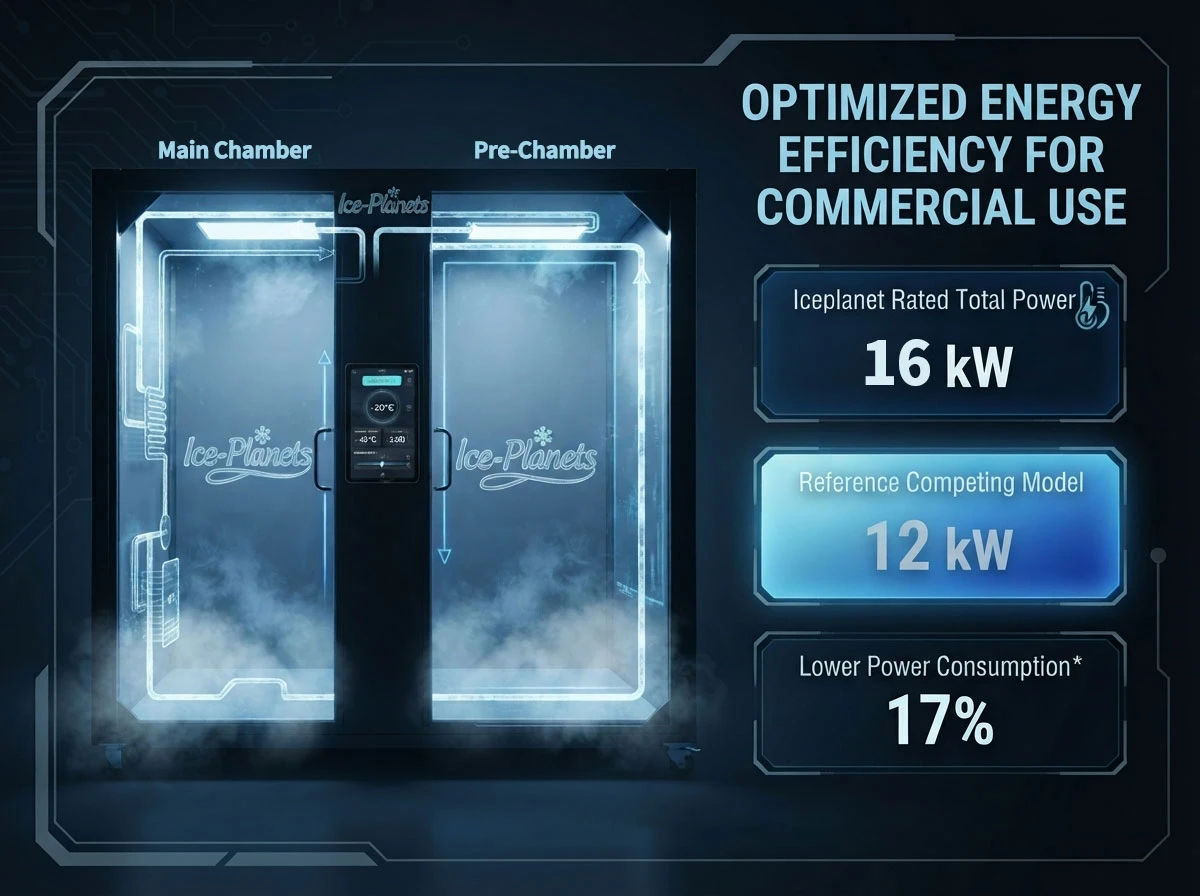

Optimized Energy Efficiency for Commercial Use
Commercial cryotherapy facilities operate equipment repeatedly throughout the day, making energy efficiency an important consideration when selecting a cryotherapy machine.
Iceplanet is specified with a 16 kW total power rating, compared with the 12 kW reference used for competing models in the product presentation.
This optimized power profile is designed to help reduce long-term operating costs while supporting the refrigeration demands of both the pre-chamber and main cryotherapy chamber.
16
kW
Iceplanet Rated Total Power
12
kW
Reference Competing Model
17
%
Lower Power Consumption
Precision Temperature Control
Consistent temperature control is essential for professional cryotherapy equipment.
Iceplanet uses independent refrigeration circuits and precision temperature regulation to maintain stable operating conditions across the two chamber zones.
-10°C to Ambient
Pre-Chamber
-110°C to -110°C
Main Chamber
±2°C
Temperature Regulation

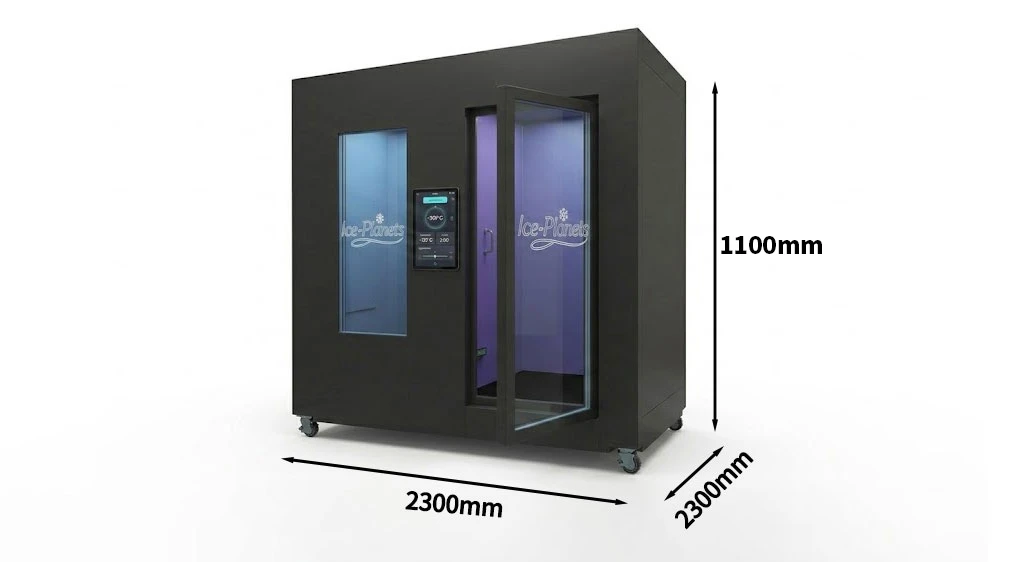

Cryotherapy Chamber Specifications
With an overall size of 2300 × 2300 × 1100 mm, Iceplanet is intentionally designed beyond the compact dimensions typically associated with single-chamber equipment.
The increased chamber depth and spacious internal configuration prioritize user comfort while supporting the high-throughput requirements of commercial wellness facilities.
| Product Type |
Electric Cryotherapy Chamber
|
| products |
 |
| Configuration | Integrated Dual-Chamber |
| Overall Dimensions | 2300 × 2300 × 1100mm |
| Net Weight | 800kg |
| Rated Total Power | 16 kW |
| Power Supply | 380V / 24A |
| Power Phase | Three-Phase |
| Pre-Chamber Temperature | -10°C to Ambient |
| Main Chamber Temperature | -110°C to -110°C |
| Temperature Regulation | ±2°C |
| Max. Chamber-to-Aggregate Distance | ≤15 m |
| Max. Ambient Temperature | ≤20°C |
| Max. Relative Humidity | ≤10% |
| Waste Heat Output | 6.5 kW |
| Cable Specification | NYM 2 × 10 mm² |
Installation & Environmental Requirements
Proper site preparation is essential for safe and stable operation of a commercial cryotherapy chamber.
Before installation, the facility should confirm available floor space, electrical capacity, ventilation, heat dissipation, and equipment placement requirements.
Installation Distance
Maximum Chamber-to-Aggregate Distance: ≤15 m
01
Ambient Temperature
≤20°C
02
Relative Humidity
≤10%
03
Waste Heat Output
6.5 kW
04
Electrical Supply
380V / 24A Three-Phase Power400
05
Whole Body Cryotherapy Chamber Applications
Iceplanet is designed for professional environments where whole body cryotherapy, customer experience, and operational efficiency are important.
Wellness Centers
Sports Recovery Centers
Fitness & Wellness Facilities
Rehabilitation & Physio Centers
Medical Aesthetics Clinics
Premium Wellness Facilities
Why Choose Iceplanet Electric Cryotherapy Chamber?
Integrated Dual-Chamber Configuration
Independent pre-chamber and main chamber zones create a more efficient workflow for commercial operation.
Commercial-Grade Construction
Heavy-duty insulation, reinforced structural components, airtight sealing, and vibration control are designed for demanding environments.
Optimized Power Consumption
The 16 kW rated total power is designed to support commercial refrigeration requirements with an optimized energy profile.
Independent Temperature Control
Separate refrigeration circuits provide independent thermal management for the two chamber zones.
High-Frequency Operation
The dual-chamber architecture is designed to support continuous customer flow and high daily session capacity.
Spacious User Environment
The enlarged chamber dimensions prioritize user comfort while supporting commercial throughput.
Iceplanet Dual-Chamber vs. Conventional Single-Chamber Systems
| Model |
Iceplanet Dual-Chamber
|
Conventional Single-Chamber
|
| products |
 |
 |
| Chamber Configuration | Dual-Chamber | Single Chamber |
| Pre-Chamber | Independent | Usually Not Available |
| Main Chamber | Independent | Integrated |
| Refrigeration Circuits | Independent | Single System |
| Customer Flow | Continuous / Parallel Preparation | Sequential |
| Temperature Zones | Independent | Single Zone |
| Commercial Throughput | High | Standard |
| Commercial Application | High-Traffic Facilities | Lower-Volume Facilities |
Ready to Upgrade Your Cryotherapy Business?
Iceplanet's Electric Cryotherapy Chamber combines dual-chamber architecture, independent temperature control, integrated electric refrigeration, and commercial-grade construction to support high-frequency professional operation.
Whether you are planning a wellness center, sports recovery facility, fitness center, rehabilitation facility, or a new cryotherapy business, our team can help you select the right configuration for your project.
Discover a smarter way to deliver whole body cryotherapy.
Designed for businesses that prioritize customer flow, operational efficiency, and commercial scalability.
FAQ
Q: Is MACYPAN cryotherapy equipment suitable for commercial use?
A: Yes. The system is specifically designed around commercial wellness, sports recovery, fitness, rehabilitation, and other professional environments requiring frequent cryotherapy sessions.
Q: Can I buy an MACYPAN cryotherapy machine for my wellness center?
A: Yes. Iceplanet's electric cryotherapy chamber is designed for commercial applications. Contact the Iceplanet team to discuss pricing, configuration, installation requirements, and project-specific solutions.
Q: There is no fan inside the chamber. Will the cold air be distributed unevenly?
A: Our duct layout is designed with fluid simulation. Cold air is delivered by duct static pressure. The chamber maintains uniform temperature without cold dead zones and stays steadily at target temperature.
Q: There is no evaporator inside the chamber. How does the cooling work?
A: We adopt cascade ultra-low temperature refrigeration. Air is compressed, heat-removed and deeply dehumidified in the external unit. Pre-chilled air at -112°C is fed into the chamber via insulated ducts. The chamber itself acts only as the cold environment space with no heat-exchange components inside.
Q: What sound is present inside the chamber? Is it completely silent?
A: It is not 100% silent. There is no running or vibration noise from fan motors. Only soft airflow sound can be heard as cold air enters the chamber. It is far quieter than conventional cryo chambers with built-in fans.
Q: Can this system cause frost or water dripping inside the chamber?
A: No. All low-temperature heat exchangers are located in the external unit. Air supplied to the chamber is deeply dehumidified. Without an internal evaporator, no frost or dripping forms on chamber walls, and no in-chamber defrosting is required.
Q: When transporting -112°C cold air through ducts, will condensation form on the outer duct surface?
A: We use multi-layer vacuum insulated ducts to minimize cold transfer. Condensation on duct exterior will not occur if the insulated piping is installed per our specifications. Installation must strictly follow our guidelines.
Q: Does routine maintenance require technicians to work inside the chamber?
A: No. All refrigeration, heat exchange and rotating components are housed in the external unit. Most inspections and maintenance are performed externally. No entry into the chamber is needed, and chamber sealing remains intact.
Q: Can this unit run continuously for long periods?
A: Yes. Without frost build-up on an internal evaporator, there is no need for frequent shutdowns for defrosting. The system can operate stably for extended sessions, ideal for high-volume SPA and wellness center usage.
Q: How clean is the air supplied to the chamber? Is mold growth a concern?
A: Air passes through deep dehumidification and multi-stage filtration in the external unit, delivering dry and clean air. Without internal evaporators or fans that trap moisture and debris, chamber walls are easy to wipe and sanitize, minimizing mold risk.
Q: What special site conditions are required to install this cryo chamber?
A: Space and ventilation for the external unit, dedicated power supply and routing space for ducts are required. We provide a full site assessment checklist to verify space, load capacity, power and ambient humidity in advance.
Q: What is the biggest advantage compared with traditional cryo chambers with internal evaporators?
A: Key advantages: No evaporator or fan inside the chamber, eliminating frost and dripping inside the cabin. There is no fan motor vibration noise, only soft inlet airflow. The simple inner chamber is easy to clean, and all serviceable components are external for convenient maintenance.
